Panel Mount Touch Monitor

Your Professional Panel Mount Touch Monitor Supplier

We supply industrial panel mount touch monitors for equipment manufacturers, automation projects, and industrial system integration.

Our product range includes industrial touchscreen monitors in multiple screen sizes, with resistive and capacitive touch options, panel mounting structures, and interfaces for connection to industrial PCs and other host systems. Different configurations can be evaluated according to installation dimensions, operating environment, display requirements, and project integration needs.

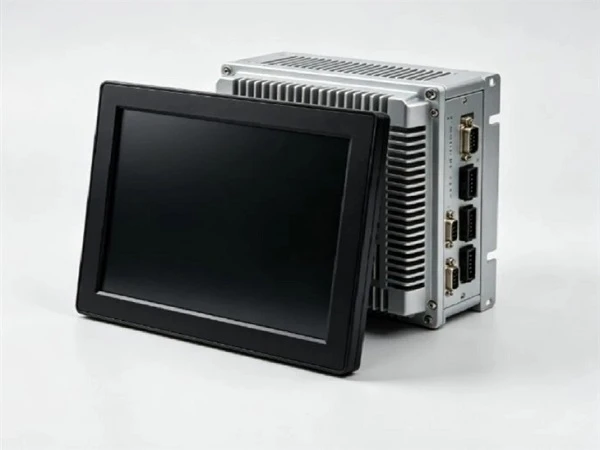

Fanless Panel Mount Touch Monitor
A fanless panel mount touch monitor is an industrial display unit that combines an LCD panel, touch screen, display electronics, and panel mounting structure. Unlike a conventional desktop...
read more
IP65 Panel Mount Touch Monitor
An IP65 Panel Mount Touch Monitor is engineered for integration directly into industrial machinery, control cabinets, operator consoles, and custom enclosures. Unlike desktop monitors, this unit...
read more
Machine Panel Mount Touch Monitor
Machine-mounted touchscreen displays are designed for applications where the operator interface must be integrated directly into the equipment enclosure.
read more
Control Cabinet Panel Mount Touch Monitor
A Control Cabinet Panel Mount Touch Monitor provides a direct display and touch interface for industrial machinery without integrating an internal computer. It connects directly to an industrial...
read more
Industrial Flush Mount Touch Monitor
An industrial flush mount touch monitor provides a clean, integrated display interface for machines, equipment panels, control systems, and embedded industrial applications. The monitor is...
read more
Industrial Panel Mount Touch Monitor
An Industrial Panel Mount Touch Monitor is a display-only device with an integrated touchscreen. Unlike an industrial panel computer, it does not include a central processing unit, operating...
read more

Technical Specifications

Parameter Category	Technical Specification Options	Engineering Details / Notes
Screen Sizes	7" to 32"	Selected based on panel space and HMI design.
Display Type	Industrial TFT LCD	Engineered for extended lifecycle and wide viewing angles.
Resolution	800×480 up to 1920×1080 (Full HD)	Matched to host system output capability.
Touch Technology	5-Wire Resistive / Projected Capacitive (PCAP)	Resistive for gloves/stylus; PCAP for multi-touch glass front.
Touch Interface	USB / RS232	Communication port for host PC or controller.
Video Inputs	VGA / HDMI / DVI	Standard ports compatible with industrial host systems.
Front Bezel	Aluminum-Magnesium Alloy / Steel	Optimized for structural rigidity and thermal dissipation.
Front Protection	IP65 / NEMA 4X (Front Panel)	Resistant to dust ingress and liquid spray.
Power Input	DC 12V / DC 24V	Industrial standard power supply configuration.
Operating Temp	Standard: 0°C to 50°C (Extended options available)	Evaluated per enclosure thermal conditions.
Mounting	Panel Mount with Clamping Brackets	Designed for secure flush cabinet/machine installation.

Why Choose Us

Flexible OEM/ODM Customization:

From front bezel dimensions and specialized touch controller integration to custom signal interfaces and private-label branding, we tailor hardware to project requirements.

Rigorous Quality Control Protocols:

Every production batch undergoes strict incoming material inspection, structural assembly checks, and thermal burn-in testing to minimize field failure rates.

Responsive Project Support:

Direct communication channels with our engineering and project teams ensure rapid sample prototyping, clear documentation, and efficient technical confirmation.

Typical Applications

Industrial Automation:

Used as operator interfaces for production equipment and automated systems.

Machine Control:

Installed in machine enclosures for monitoring, parameter input, and equipment operation.

Control Cabinets:

Integrated into electrical cabinets and industrial control systems.

Manufacturing Equipment:

Used for machine visualization, production monitoring, and operator interaction.

Testing and Inspection Systems:

Provides a touchscreen interface for equipment configuration and data display.

Smart Manufacturing Systems:

Used as terminal displays for production information and system interaction.

OEM Equipment:

Suitable for machinery builders integrating a touchscreen display into their own proprietary equipment design.

Industrial Display Performance & Environment

Indoor Industrial Environments:

Standard industrial display configurations are typically suitable for factory control rooms, production equipment, automation cabinets, and indoor machine interfaces.

Bright Working Areas:

Applications exposed to stronger ambient light or direct indoor lighting may require higher display brightness to maintain readability.

Continuous Operation:

For systems operating for extended periods, buyers should evaluate display configurations according to expected operating hours and thermal dissipation requirements.

Viewing Requirements:

Screen position and operator location should be considered when evaluating viewing angles and display size.

Touch Operation:

Touchscreen selection must account for finger operation, gloved operation, stylus use, frequency of use, and surface cleaning requirements.

OEM and Customization Capabilities

Mechanical Structure:

Front panel dimensions, panel cutout dimensions, enclosure structure, and mounting mechanism.

Display Configuration:

Screen size adjustments, resolution tuning, and brightness optimization.

Touchscreen:

Resistive touch, capacitive touch, or specialized cover glass thickness requirements.

Interfaces:

Video input configuration, touch communication ports, and power input specifications.

Branding:

Front panel logo integration, custom product labeling, and OEM identification markings.

For customized projects, mechanical drawings and interface requirements should be confirmed before finalizing the product configuration.

System Compatibility & Interfaces

A panel mount touch monitor must be fully compatible with the connected host system. Before ordering, confirm:

Video Interface:

The monitor input must match the available output interface of the industrial PC or embedded system (such as HDMI, VGA, or DVI).

Touch Interface:

The touchscreen communication interface (such as USB or RS232) must be compatible with the operating system and host hardware.

Operating System Compatibility:

The monitor functions as a display and input device, but connected systems may run various operating systems. Ensure proper driver support for touch controllers.

Cable Requirements:

Cable routing should be considered before installation, particularly when rear installation space is limited, equipment structures are compact, or cables must pass through tight control cabinet entries.

Touchscreen Technology Selection

Choosing Between Resistive and Capactive Touch for Industrial Applications
Different applications require different touchscreen technologies. Selection should be based on the operating method and working environment rather than touchscreen type alone.

Resistive Touch Monitors: Suitable for applications requiring operation with gloves, stylus input, direct pressure, and demanding industrial work environments. Commonly considered for machine interfaces where operators do not always use bare fingers.

Capacitive Touch Monitors: Provides a glass-front touch interface with responsive finger operation. Commonly selected for modern HMI systems, automation equipment, information terminals, and applications requiring a flat front appearance.

Selection Considerations
Before selecting a touchscreen, confirm:

Operator input method and glove requirements
Cleaning and sanitation requirements
Installation environment and dust exposure
Expected operating frequency
Front panel aesthetic and sealing design

The most suitable touch technology depends on actual operating conditions.

Quality Control & Reliability Testing

Industrial environments demand hardware stability and reliable continuous operation. Our manufacturing and assembly process incorporates strict technical controls to ensure mechanical and electronic durability.

Component Selection: Industrial-grade LCD panels and touch sensors selected for long life cycles and stable performance.

Structural Assembly:

Robust enclosure designs utilizing cold-rolled steel or aluminum-magnesium alloys for structural rigidity and heat dissipation.

Sealing Verification:

Front bezel construction engineered to achieve targeted ingress protection ratings against dust and liquid ingress at the mounting interface.

Aging & Burn-in Testing:

Units undergo rigorous thermal and operational burn-in cycles to detect early-life component failures prior to shipment.

Electrical Safety Inspection:

Comprehensive checks on power isolation, signal integrity, and static resistance.

FAQ

Q: Can these monitors be connected to existing third-party industrial PCs or controllers?

A: Yes. Panel mount touch monitors are designed as standalone display and input units. They connect directly to any host system (such as an industrial PC, PLC, or embedded controller) via standard video ports (HDMI, VGA, or DVI) and touch communication ports (USB or RS232).

Q: What is the difference between panel-mount and open-frame installations?

A: Panel-mount monitors feature a front bezel with built-in mounting brackets or screw fixtures designed to be inserted directly into a cutout from the front or rear of a cabinet/machine door, forming a sealed flush fit. Open-frame monitors typically lack a finished front bezel and are designed to be embedded entirely inside a custom customer enclosure from the inside.

Q: Can the display brightness be adjusted for high-ambient-light environments?

A: Standard configurations are calibrated for typical indoor industrial environments. For applications exposed to strong indoor lighting or semi-outdoor settings, enhanced brightness options can be evaluated during the project review stage.

Q: What is the standard lead time for standard models and customized samples?

A: Standard models typically require shorter preparation times, while custom mechanical or interface prototypes generally require sample production windows for engineering drawing sign-off and functional testing before batch manufacturing.

Q: How do you handle model longevity and phase-outs for long-term projects?

A: We prioritize industrial-grade lifecycle management. When core components like LCD panels face discontinuation, we provide advance notification, form-fit-function compatible alternatives, and engineering validation samples to ensure minimal disruption to OEM equipment production.
